Understanding Minimum Design Metal Temperature (MDMT)

The Minimum Design Metal Temperature (MDMT) is a crucial factor in engineering and manufacturing, particularly for pressure vessels and piping systems. It represents the lowest permissible temperature at which a material can be safely subjected to design loads without experiencing brittle fracture.

Understanding the MDMT is essential for ensuring the safe and reliable operation of pressure equipment and piping systems across various industries, including chemical processing, oil and gas, power generation, and more.

MDMT Definition and Significance

The MDMT is determined based on the material’s properties, specifically its resistance to brittle fracture at low temperatures. This resistance is often evaluated through Charpy V-notch impact tests, which measure the energy absorbed by the material before fracturing.

The MDMT is incorporated into various design codes and standards, such as the ASME Boiler and Pressure Vessel Code (BPVC) and the American Society of Mechanical Engineers (ASME) B31 piping codes. These codes provide guidelines for selecting materials and establishing design pressure and temperature limits based on the MDMT.

Factors Influencing MDMT

Several factors can influence the MDMT of a material:

  • Material type: Different materials exhibit varying degrees of resistance to brittle fracture. For instance, carbon steels generally have lower MDMTs compared to stainless steels or nickel alloys.
  • Material thickness: Thicker components generally have lower MDMTs compared to thinner ones. This is because thicker sections experience a larger temperature gradient through their thickness, potentially leading to stress concentrations and brittle fracture.
  • Material processing and heat treatment: Specific manufacturing processes and heat treatments can alter the microstructure and mechanical properties of a material, thereby affecting its MDMT.
  • Operating environment: The presence of corrosive chemicals, hydrogen, or other embrittling agents can further decrease the MDMT of a material.

Impact of MDMT on Design

The MDMT has a significant impact on various aspects of pressure vessel and piping system design:

  • Material selection: The MDMT dictates the choice of materials suitable for a specific operating temperature.
  • Wall thickness: The MDMT influences the required minimum wall thickness of components to withstand design pressure at low temperatures.
  • Impact testing requirements: Materials with lower MDMTs may require additional impact testing to ensure their suitability for the application.
  • Operational limitations: The MDMT defines the minimum temperature at which the pressure equipment can be safely operated.

MDMT Determination and Calculation

The MDMT can be determined through various methods, including:

  • Material data sheets: Manufacturers often provide MDMT values for their materials based on Charpy impact test data.

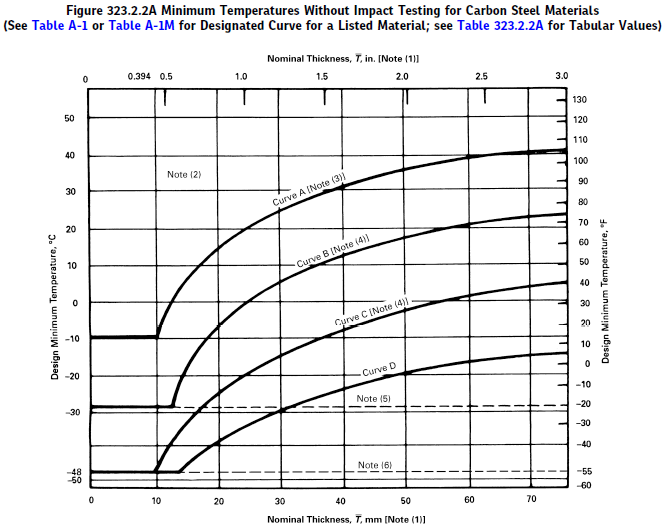

  • Design codes and standards: ASME BPVC and B31 codes offer tables and equations for calculating the MDMT based on material type, thickness, and other factors.
  • Specialized software: Advanced engineering software can be used to perform detailed calculations and analysis of MDMT based on specific material properties and operating conditions.

Understanding and applying MDMT principles are fundamental to ensuring the safe and reliable operation of pressure equipment and piping systems. By carefully considering this critical factor during design and material selection, engineers can prevent brittle fracture and potential catastrophic failures.

Additional Resources

ASME Boiler and Pressure Vessel Code (BPVC)
ASME B31 Piping Codes
National Board Inspection Code (NBIC)
API Standard 6A (Wellhead and Christmas Tree Equipment)
